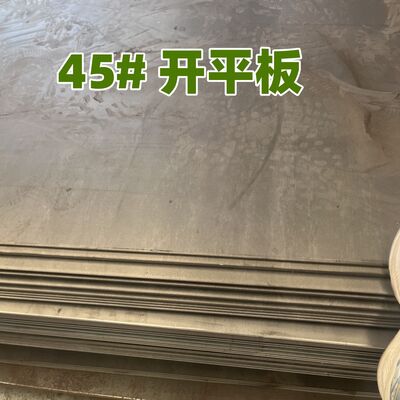

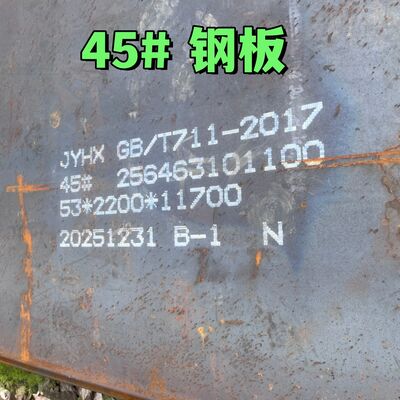

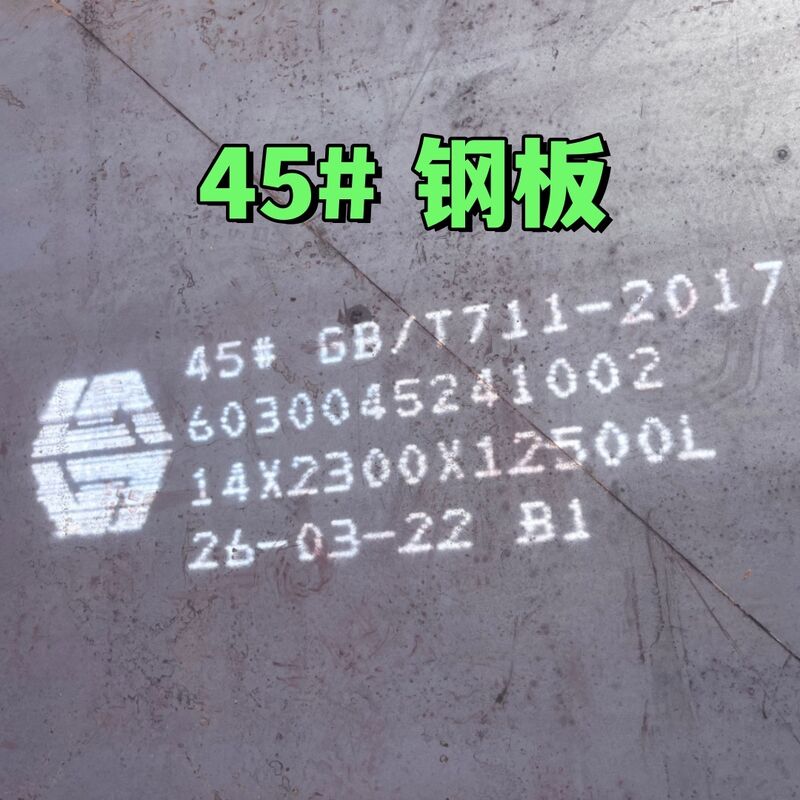

Hot Rolled Grade S45C 45# SAE1045 Aisi 1045 10 - 200mm Carbon Steel Plate
Detail informations of our 1045 Steel Plate
| Product Name |
1045 Steel Plate |
| Width |
2200mm or custom as request |
| Length |
custom as request |
| Thickness |
10 - 200mm |
| Service |
Cutting plate into any size as request |
| Other Grade |
1035 1040 1055 1060 1065 1070 1016 1037 1039 1046 1053 1566 1572
Grade 50 Grade 55 Grade 60 Grade 65 Grade 80 S35C S40C S50C S55C S58C
SWRH67B SWRH72A SWRH77A 40 1040 65 1065 SWRCH22K C22E S550QL 1.8925 1.0114 1.0425 40Cr 5140
|
| Application |
Widely used in construction machinery, mining machinery, coal mining machinery, environmental protection machinery, metallurgical
machinery and other parts.Excavator, loader, bulldozer bucket plate, blade plate, side blade plate, blade.Crusher liner, blade |
| MOQ |
500 kgs |
| Shipment time |
5 - 7 days for mateials in stock |
AISI 1045 steel is characterized by good weldability, good machinability, and high strength and impact properties in either the normalized or hot-rolled condition.
AISI 1045 steel has a low through-hardening capability with only sections of around 60 mm in size being recommended as suitable for tempering and through-hardening. However, it can be efficiently flame- or induction-hardened in the normalized or hot rolled condition to obtain surface hardnesses in the range of Rc 54 - Rc 60 based on factors such as section size, type of set up, quenching medium used etc.
AISI 1045 steel lacks suitable alloying elements and hence does not respond to the nitriding process.
Chemical composition of AISI 1045
| C |
FE |
MN |
P |
S |
| 0.420 - 0.50% |
98.51 - 98.98% |
0.60 - 0.90% |
≤ 0.040% |
≤ 0.050% |
Mechanical Properties
| Mechanical Properties |
Metric |
Imperial |
| Hardness, Brinell |
163 |
163 |
| Hardness, Knoop (Converted from Brinell hardness) |
184 |
184 |
| Hardness, Rockwell B (Converted from Brinell hardness) |
84 |
84 |
| Hardness, Vickers (Converted from Brinell hardness) |
170 |
170 |
| Tensile Strength, Ultimate |
565 MPa |
81900 psi |
| Tensile Strength, Yield |
310 MPa |
45000 psi |
| Elongation at Break (in 50 mm) |
16.0 % |
16.0 % |
| Reduction of Area |
40.0 % |
40.0 % |
| Modulus of Elasticity (Typical for steel) |
200 GPa |
29000 ksi |
| Bulk Modulus (Typical for steel) |
140 GPa |
20300 ksi |
| Poissons Ratio (Typical For Steel) |
0.290 |
0.290 |
| Shear Modulus (Typical for steel) |
80 GPa |
11600 ksi |
AISI 1045 is widely used for all industrial applications requiring more wear-resistance and strength. Typical applications of AISI 1045 are as follows:
| Gears |
Pins |
Rams |
| Shafts |
Rolls |
Sockets |
| Axles |
Spindles |
Worms |
| Bolts |
Ratchets |
Light gears |
| Studs |
Crankshafts |
Guide rods |
| Connecting rods |
Torsion bars |
Hydraulic clamps |
We Have State Of The Art Production Lines With Leading Edge Technology For Bearing Steel 100Cr6, Stainless Steel 304 / 316 / Duplex UNS S31803 And Super Duplex UNS S3276, Alloy Steel 4130/4140/8620, High Speed Tool T1/M2/M35/M42 And Die Steel D2/D3/H13/H21/P20. The Products Covers Special Steel Round, Square, Flat, Wire Rod, Wire, Sheet, Pipe, Strip And Heavy Forgings. Produces Forged Round Steel (¢120~850mm) And Square Steel (120~550mm) Of Various Steel Grades.
| Alloy Steel |
4140,4142,42CrMo4,1.7225,SCM440,4130,SCM430,25CrMo4,1.7218,34CrNiMo6,
1.6582,4340,SNCM439,36CrNiMo4,1.6511,SACN645,1340,SMn438,SNC236
|
| Tool Steel |
H13,1.2344,SKD61,D2,SKD11,1.2379,1.2510,01,SKS3,95MnWCr5,D3,SKD1,1.2419,
SKS31,H21,SKD5,1.2581,P20,35CrMo7,1.2738,1.2316,M2
|
| Bearing Steel |
GCr15,52100,SUJ1,SUJ2,100Cr6,1.2067,55C,8620,4320,9310,440C,M50
|
| Spring Steel |
9260,SUP6,SUP7,1.7108,54SiCr6,1.7102,5155,SUP9,1.7176,5160,1.7177,6150,
SUP10,51CrV4,1.8159
|
| Stainless Steel |
321,sus321,1.4541,304,SUS304,1.4301,410,SUS410,1.4006,420,1.4021,1.4028,
434,1.4113,316L,SUS316L,1.4435,630,1.4542,431,1.4057
|
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according toquantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.lf you have another question, pls feel free to contact us
