SUS310S OD102MM ID 58MM Hollow Shaft Bar ASTM A312 TP310S Stainless Steel Seamless Pipe

Sertifikasi
CINA JIANGSU MITTEL STEEL INDUSTRIAL LIMITED Sertifikasi
CINA JIANGSU MITTEL STEEL INDUSTRIAL LIMITED Sertifikasi
Ulasan pelanggan
this is the second order l buy this company ,quality is very good ,same as europure quality .we will go on ccooperate with this company .

—— Andrew Greg - Turkey

200 ton Stainless steel sheet is arrived on 10th Oct 2014 , the quality is very good.,deliver time is very fast It's very lucky we find this factory

—— Mechile Kilar Chard - Brazial

We Have Cooperate With this Factory Many Years , Everything Goes Very Well.l Like This Factory !

—— Tony Hilton - Poland

This is Our Thrid Time Buy from Mittel,Quality is Very Goods ,We Are Glad to Find This Reliable Factory

—— Natalya Ugay-Russia

Quality is very good and delivery time very fast ,we want to do long terms business with this company

—— Pongpol Pluemsati-Thailand

I 'm Online Chat Now

SUS310S OD102MM ID 58MM Hollow Shaft Bar ASTM A312 TP310S Stainless Steel Seamless Pipe

SUS310S OD102MM ID 58MM Hollow Shaft Bar ASTM A312 TP310S Stainless Steel Seamless Pipe
SUS310S OD102MM ID 58MM Hollow Shaft Bar ASTM A312 TP310S Stainless Steel Seamless Pipe SUS310S OD102MM ID 58MM Hollow Shaft Bar ASTM A312 TP310S Stainless Steel Seamless Pipe SUS310S OD102MM ID 58MM Hollow Shaft Bar ASTM A312 TP310S Stainless Steel Seamless Pipe

Gambar besar :  SUS310S OD102MM ID 58MM Hollow Shaft Bar ASTM A312 TP310S Stainless Steel Seamless Pipe

Detail produk:
Tempat asal: Cina
Nama merek: TSING SHAN
Sertifikasi: ISO SGS MTC
Nomor model: 310S 1.4845
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 100kgs
Harga: 2.65-8.55 USD/KG
Kemasan rincian: Ekspor Packing
Waktu pengiriman: 7 hari
Syarat-syarat pembayaran: L/c, t/t
Menyediakan kemampuan: 50000KGS

SUS310S OD102MM ID 58MM Hollow Shaft Bar ASTM A312 TP310S Stainless Steel Seamless Pipe

Deskripsi
Diameter luar: 6 ~ 860mm Digunakan: Mesin medis
Bentuk bagian: Bulat Berongga Inspeksi: ET, HT, UT, PMI
Resistensi suhu: Tinggi Ketebalan dinding: Dapat disesuaikan
Ndt: ET, UT, HT, Diameter luar: 6mm hingga 610mm
Perawatan permukaan: Cerah anil permukaan: Dipoles
Faktur: dengan berat teoritis Spesifikasi: ASTM A213, ASME SA213
Melayani: pemotongan/pemolesan Aplikasi: Industri, Kimia, Pengolahan Makanan, Medis
Tes: Tes NDT Eddy Current Atau Hidrolik
Menyoroti:

SUS310S stainless steel seamless pipe

,

ASTM A312 TP310S hollow shaft bar

,

OD102MM ID58MM stainless steel tube

 SUS310S OD102MM ID 58MM Hollow Shaft Bar ASTM A312 TP310S Stainless Steel Seamless Pipe

Product Description

Stainless steel pipe is a hollow strip of round steel, which is widely used in petroleum, chemical, medical, food, light industry, mechanical instrumentation and other industrial pipelines and mechanical structural components. In addition, when the bending and torsional strength are the same, the weight is light, so it is also widely used in the manufacture of mechanical parts and engineering structures. Also used as furniture and kitchenware.

Product name
Seamless Stainless Steel Pipe /Tube
Steel grade
310S 321 304 304L 904l 2205 2507
Standard
ASTM A213,A312,ASTM A269,ASTM A778,ASTM A789,DIN 17456, DIN17457,DIN 17459,JIS G3459,JIS G3463,GOST9941,EN10216, BS3605,GB13296
Material
304,304L,309S,310S,316,316Ti,317,317L,321,347,347H,304N,316L, 316N,201,202
Surface
Polishing,annealing,pickling,bright
Type
hot rolled and cold rolled
Size
Wall thickness
1mm-150mm(SCH10-XXS)
Outer diameter
6mm-2500mm (3/8"-100")
Delivery time
Prompt delivery or as the order quantity.
Package
1.By bundles, each bundle weight under 3 tons, for small outer diameter seamless steel pipe, each bundle with 4-8 steel strips;
2.After making by bundle, covered with Polyethylene waterproof cloth; 3.Customized is accepted.
Container size
20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) 24-26CBM
40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) 54CBM
40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High) 68CBM





Grade C Si Mn P S Ni Cr Mo
201 ≤0 .15 ≤0 .75 5. 5-7. 5 ≤0.06 ≤ 0.03 3.5 -5.5 16 .0 -18.0 -
202 ≤0 .15 ≤l.0 7.5-10.0 ≤0.06 ≤ 0.03 4.0-6.0 17.0-19.0 -
301 ≤0 .15 ≤l.0 ≤2.0 ≤0.045 ≤ 0.03 6.0-8.0 16.0-18.0 -
302 ≤0 .15 ≤1.0 ≤2.0 ≤0.035 ≤ 0.03 8.0-10.0 17.0-19.0 -
304 ≤0 .0.08 ≤1.0 ≤2.0 ≤0.045 ≤ 0.03 8.0-10.5 18.0-20.0 -
304L ≤0.03 ≤1.0 ≤2.0 ≤0.035 ≤ 0.03 9.0-13.0 18.0-20.0 -
309S ≤0.08 ≤1.0 ≤2.0 ≤0.045 ≤ 0.03 12.0-15.0 22.0-24.0 -
310S ≤0.08 ≤1.5 ≤2.0 ≤0.035 ≤ 0.03 19.0-22.0 24.0-26.0
316 ≤0.08 ≤1.0 ≤2.0 ≤0.045 ≤ 0.03 10.0-14.0 16.0-18.0 2.0-
316L ≤0 .03 ≤1.0 ≤2.0 ≤0.045 ≤ 0.03 12.0 - 15.0 16 .0 -1 8.0 2.0 -
321 ≤ 0 .08 ≤1.0 ≤2.0 ≤0.035 ≤ 0.03 9.0 - 13 .0 17.0 -1 9.0 -
630 ≤ 0 .07 ≤1.0 ≤1.0 ≤0.035 ≤ 0.03 3.0-5.0 15.5-17.5 -
631 ≤0.09 ≤1.0 ≤1.0 ≤0.030 ≤0.035 6.50-7.75 16.0-18.0 -
904L ≤ 2 .0 ≤0.045 ≤1.0 ≤0.035 - 23.0·28.0 19.0-23.0 4.0-5.0
2205 ≤0.03 ≤1.0 ≤2.0 ≤0.030 ≤0.02 4.5-6.5 22.0-23.0 3.0-3.5
2507 ≤0.03 ≤0.8 ≤1.2 ≤0.035 ≤0.02 6.0-8.0 24.0-26.0 3.0-5.0
2520 ≤0.08 ≤1.5 ≤2.0 ≤0.045 ≤ 0.03 0.19 -0. 22 0. 24 -0 . 26 -
410 ≤0.15 ≤1.0 ≤1.0 ≤0.035 ≤ 0.03 - 11.5-13.5 -
430 ≤0.1 2 ≤0.75 ≤1.0 ≤ 0.040 ≤ 0.03 ≤0.60 16.0 -18.0 -

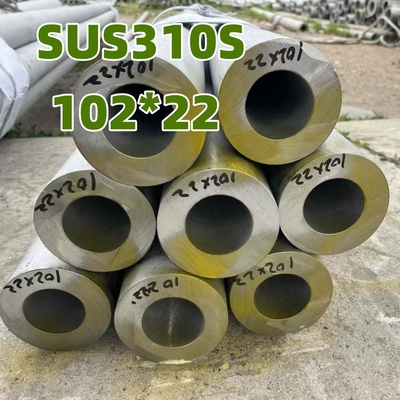

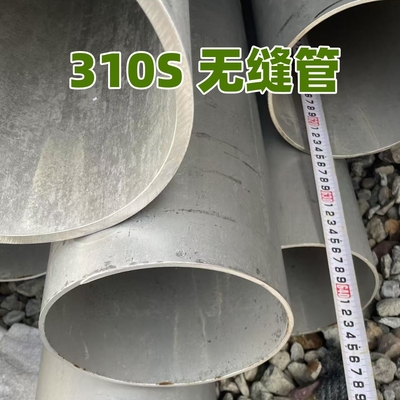

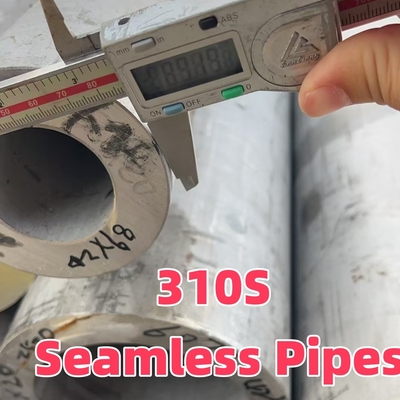

Detailed Photos

SUS310S OD102MM ID 58MM Hollow Shaft Bar ASTM A312 TP310S Stainless Steel Seamless Pipe 0SUS310S OD102MM ID 58MM Hollow Shaft Bar ASTM A312 TP310S Stainless Steel Seamless Pipe 1SUS310S OD102MM ID 58MM Hollow Shaft Bar ASTM A312 TP310S Stainless Steel Seamless Pipe 2



FAQ



Q1. What are your company's main products ?

A1: Our main products are stainless steel, carbon steel, galvanized steel, aluminium steel, ppgi steel products, including sheets,pipes, coils, strips, bars and channels.

Q2. What are the advantages of your company ?

A2: We guarantee that the quantity and specification of products are in full compliance with the standards of customer orders. We support any kinds of test. In addition, We also have more professional service and competitive price.

Q3. How do you control quality ?

A3: We provide Factory Test Report, also support Third Party Inspection.

Q4. How many countries you already exported ?

A4: Exported to more than 50 countries mainly from Middle East, Russia, United States, Canada, Italy, Germany, Australia, Egypt, UAE, Vietnam, Kuwait, Sri Lanka, Indonesia, Bangladesh, Turkey, India, etc.

Q5. Can you provide sample ? Do you support OEM ?

A5: Yes. Small samples in store can be provided for free. Customized samples will take about 2-3 days.

Q6: What's your payment terms ?

A6: By T/T, L/C (30% deposit in advance, balance 70% before shipment), Western Union, Paypal, or Trade Online.
