Detail produk:
|
| Produk: | Pipa Stainless Steel | Kelas: | TP304 TP316L TP321.etc |
|---|---|---|---|
| Standar: | ASTM A312/312M | Diameter: | DN6 - DN400mm |
| Panjangnya: | 6m atau dipotong sesuai permintaan | Permukaan: | finishing acar |
| Cahaya Tinggi: | S31803 Duplex Pipa Stainless Steel,S32101 Duplex Pipa Stainless Steel,S32205 Pipa Baja Duplex |
||
Pipa Stainless Steel Duplex Kelas S31803 S32205 S32750 S32760 S32101 Pipa SS
Pipa Seamless Stainless Steel terbuat dari batang bulat.Ada banyak proses untuk membuat round bar menjadi pipa seamless.Berbeda dengan pipa las, pipa seamless tidak memiliki jahitan las di seluruh bagian.Oleh karena itu, ia dapat menanggung tekanan lebih tinggi daripada pipa yang dilas.
Ini banyak digunakan dalam industri makanan, peralatan rumah tangga dan elektronik konsumen, peralatan medis, dekorasi arsitektur, peralatan perangkat keras, industri otomotif, petrokimia, pabrik pengolahan air, aerospace, dll.
Tubinox mampu membuat pipa seamless stainless steel sesuai standar / spesifikasi yang berbeda, seperti ASTM A312 / ASME SA312, ASTM A213 / ASME SA213, ASTM A269, ASTM A632 / ASME SA632, JIS G3459, JIS G3448, JIS G3463, EN10216-5 , EN ISO1127, DIN 17456, DIN 17458, GOST 9941, dll. Kami juga dapat membuat sesuai spesifikasi khusus.
| Jenis | Mulus/Dilas |
| Ukuran | Diameter luar: 10mm--630mm (mulus);10mm-2500mm (dilas) Ketebalan dinding: 0.5mm--50mm |
| Standar | ASTM A312, ASTM A269, ASTM213, EN10216-5 ASTM A789 (ASME SA789), ASTM A790 (ASME SA790) dll. |
| Nilai | TP304, 304L, 304H, TP316, 316L, 316H, TP321/321H, TP347/347H, S31803, S32205, S31500, S32304, S32750, S32760 dll. |
| Permukaan | Pengawetan, solusi padat, dipoles atau sebagai kebutuhan pelanggan |
| Sedang mengemas | Bundel, kantong plastik, tas anyaman, kotak kayu |
| Pengiriman | stok, 5-30days ke port |
| Pembayaran | T/T, D/P, L/C pada pandangan, Usance L/C dll. |
| DN | NPS | OD | ASME B36.19M | ASME B36.10M | |||||||||||||||
| Sch5S | Sch10S | Sch40S | Sch80S | Sch5 | Sch10 | Sch20 | Sch30 | Sch40 | Sch60 | Sch80 | Sch120 | Sch140 | Sch160 | penyakit menular seksual | XS | XXS | |||
| (Inci) | (mm) | Tebal Dinding (mm) | Tebal Dinding (mm) | ||||||||||||||||
| 6 | 1/8 | 10.3 | - | 1.24 | 1.73 | 2.41 | - | 1.24 | - | 1.45 | 1.73 | - | 2.41 | - | - | - | 1.73 | 2.41 | - |
| 8 | 1/4 | 13.7 | - | 1.65 | 2.24 | 3.02 | - | 1.65 | - | 1.85 | 2.24 | - | 3.02 | - | - | - | 2.24 | 3.02 | - |
| 10 | 3/8 | 17.1 | - | 1.65 | 2.31 | 3.20 | - | 1.65 | - | 1.85 | 2.31 | - | 3.20 | - | - | - | 2.31 | 3.20 | - |
| 15 | 1/2 | 21.3 | 1.65 | 2.11 | 2.77 | 3.73 | 1.65 | 2.11 | - | 2.41 | 2.77 | - | 3.73 | - | - | 4.78 | 2.77 | 3.73 | 7.47 |
| 20 | 3/4 | 26.7 | 1.65 | 2.11 | 2.87 | 3.91 | 1.65 | 2.11 | - | 2.41 | 2.87 | - | 3.91 | - | - | 5.56 | 2.87 | 3.91 | 7.82 |
| 25 | 1 | 33.4 | 1.65 | 2.77 | 3.38 | 4.55 | 1.65 | 2.77 | - | 2.90 | 3.38 | - | 4.55 | - | - | 6.35 | 3.38 | 4.55 | 9.09 |
| 32 | 1-1/4 | 42.2 | 1.65 | 2.77 | 3.56 | 4.85 | 1.65 | 2.77 | - | 2.97 | 3.56 | - | 4.85 | - | - | 6.35 | 3.56 | 4.85 | 9.70 |
| 40 | 1-1/2 | 48.3 | 1.65 | 2.77 | 3.68 | 5.08 | 1.65 | 2.77 | - | 3.18 | 3.68 | - | 5.08 | - | - | 7.14 | 3.68 | 5.08 | 10.15 |
| 50 | 2 | 60.3 | 1.65 | 2.77 | 3.91 | 5.54 | 1.65 | 2.77 | - | 3.18 | 3.91 | - | 5.54 | - | - | 8.74 | 3.91 | 5.54 | 11.07 |
| 65 | 2-1/2 | 73.0 | 2.11 | 3.05 | 5.16 | 7.01 | 2.11 | 3.05 | - | 4.78 | 5.16 | - | 7.01 | - | - | 9.53 | 5.16 | 7.01 | 14.02 |
| 80 | 3 | 88.9 | 2.11 | 3.05 | 5.49 | 7.62 | 2.11 | 3.05 | - | 4.78 | 5.49 | - | 7.62 | - | - | 11.13 | 5.49 | 7.62 | 15.24 |
| 90 | 3-1/2 | 101.6 | 2.11 | 3.05 | 5.74 | 8.08 | 2.11 | 3.05 | - | 4.78 | 5.74 | - | 8.08 | - | - | - | 5.74 | 8.08 | - |
| 100 | 4 | 114.3 | 2.11 | 3.05 | 6.02 | 8.56 | 2.11 | 3.05 | - | 4.78 | 6.02 | - | 8.56 | 11.13 | - | 13.49 | 6.02 | 8.56 | 17.12 |
| 125 | 5 | 141.3 | 2.77 | 3.40 | 6.55 | 9.53 | 2.77 | 3.40 | - | - | 6.55 | - | 9.53 | 12.70 | - | 15.88 | 6.55 | 9.53 | 19.05 |
| 150 | 6 | 168.3 | 2.77 | 3.40 | 7.11 | 10.97 | 2.77 | 3.40 | - | - | 7.11 | - | 10.97 | 14.27 | - | 18.26 | 7.11 | 10.97 | 21.95 |
| 200 | 8 | 219.1 | 2.77 | 3.76 | 8.18 | 12.70 | 2.77 | 3.76 | 6.35 | 7.04 | 8.18 | 10.31 | 12.70 | 18.26 | 20.62 | 23.01 | 8.18 | 12.70 | 22.23 |
| 250 | 10 | 273.0 | 3.40 | 4.19 | 9.27 | 12.70 | 3.40 | 4.19 | 6.35 | 7.80 | 9.27 | 12.70 | 15.09 | 21.44 | 25.40 | 28.58 | 9.27 | 12.70 | 25.40 |
| 300 | 12 | 323.8 | 3.96 | 4.57 | 9.53 | 12.70 | 3.96 | 4.57 | 6.35 | 8.38 | 10.31 | 14.27 | 17.48 | 25.40 | 28.58 | 33.32 | 9.53 | 12.70 | 25.40 |
| 350 | 14 | 355.6 | 3.96 | 4.78 | 9.53 | 12.70 | 3.96 | 6.35 | 7.92 | 9.53 | 11.13 | 15.09 | 19.05 | 27.79 | 31.75 | 35.71 | 9.53 | 12.70 | - |
| 400 | 16 | 406.4 | 4.19 | 4.78 | 9.53 | 12.70 | 4.19 | 6.35 | 7.92 | 9.53 | 12.70 | 16.66 | 21.44 | 30.96 | 36.53 | 40.49 | 9.53 | 12.70 | - |
| 450 | 18 | 457.0 | 4.19 | 4.78 | 9.53 | 12.70 | 4.19 | 6.35 | 7.92 | 11.13 | 14.27 | 19.05 | 23.83 | 34.93 | 39.67 | 45.24 | 9.53 | 12.70 | - |
| 500 | 20 | 508.0 | 4.78 | 5.54 | 9.53 | 12.70 | 4.78 | 6.35 | 9.53 | 12.70 | 15.09 | 20.62 | 26.19 | 38.10 | 44.45 | 50,01 | 9.53 | 12.70 | - |
| 550 | 22 | 559.0 | 4.78 | 5.54 | - | - | 4.78 | 6.35 | 9.53 | 12.70 | - | 22.23 | 28.58 | 41.28 | 47.63 | 53,98 | 9.53 | 12.70 | - |
| 600 | 24 | 610.0 | 5.54 | 6.35 | 9.53 | 12.70 | 5.54 | 6.35 | 9.53 | 14.27 | 17.48 | 24.61 | 30.96 | 46.02 | 52.37 | 59,54 | 9.53 | 12.70 | - |

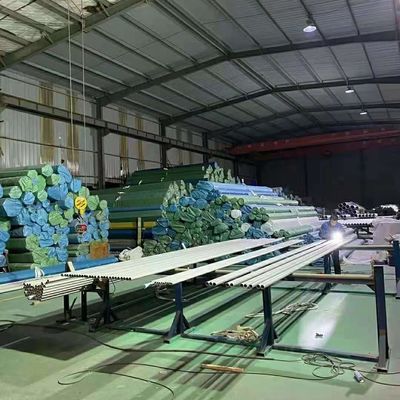

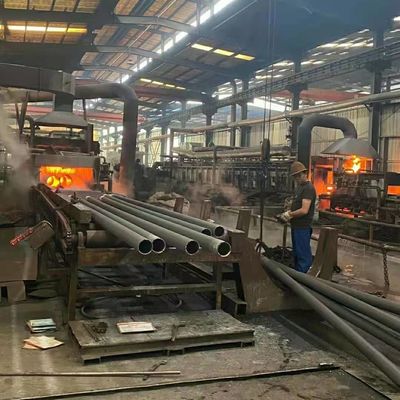

Acara Pabrik kami
Informasi Pengiriman:
1. PENGIRIMAN SELURUH DUNIA.(Kecuali beberapa negara dan APO/FPO)
2. Barang dikirim dengan 20", 40" FCL/LCL dengan jumlah atau permintaan pelanggan.
3. Pelanggan menentukan pengirim barang atau metode pengiriman yang dapat dinegosiasikan!
4. Waktu Pengiriman: 10-30days setelah sesuai atau sesuai kuantitas.

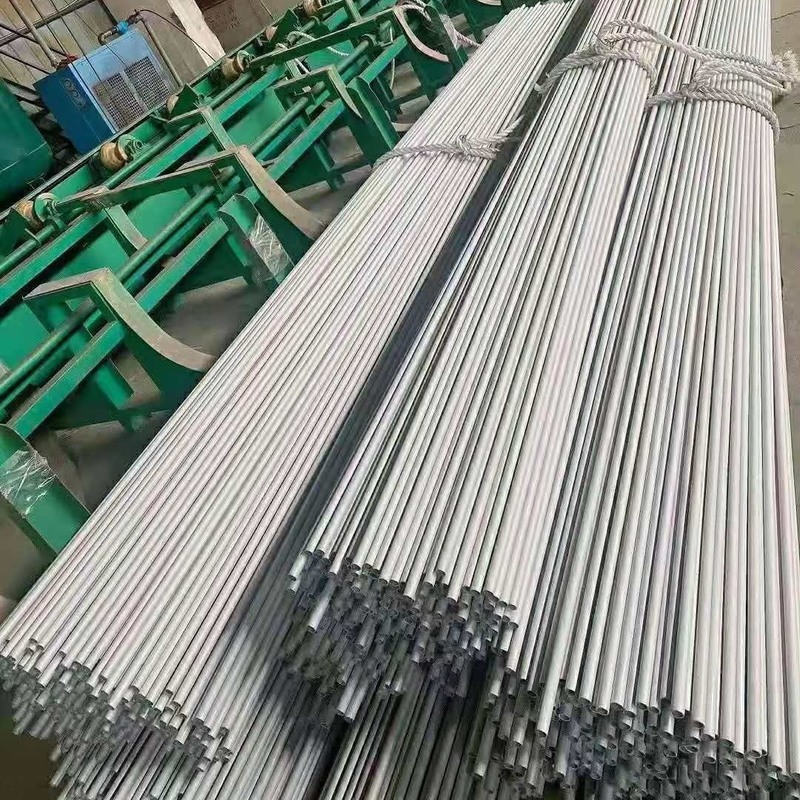

Gambar Produk
